LM-1G2G-4CW-1KWP-SMF Active

RF Limiter

Product Feature

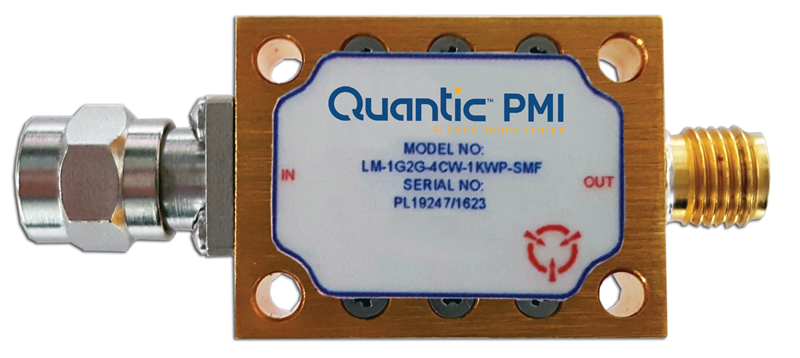

Quantic PMI Model LM-1G2G-4CW-1KWP-SMF is a RF Limiter that operates in the 1 to 2 GHz frequency range. This limiter can handle 4 W CW and 1 kW peak (1% duty cycle, 1 µs maximum pulse width) input power and provides a maximum leakage of +16 dBm CW input. This module has a low insertion loss of 0.7 dB and a recovery time of 1 µs. Package size is 1.00" x 0.75" x 0.38" with SMA male / female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 2 GHz
Frequency Min (GHz): 1
Frequency Max (GHz): 2
Insertion Loss (dB): 0.7 Max
Input/Output VSWR: 2.0:1 Max
Input Power: 4 W CW Max,
1 kW Peak (1% Duty Cycle,
1 µs Max Pulse Width)
RF Leakage (dBm): 16 Max
Recovery Time: 1 µs Max
P1dB Limiting Threshold (dBm): 5 Min
Impedance: 50 Ohm
Connectors In/Out: SMA (M/F)
Size: 1.00" x0.75" x 0.38"
Finish: Gold Plated
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +95 ºC
Stabilization Bake: MIL-STD-883, Method 1008 Cond. B
Thermal Cycle: MIL-STD-883, Method 1010 Cond. B
Vibration: Diplacement (Double Amplitude):5 mm p-p 2~7 Hz, Acceleration Level (Peak):±0.5 G 7~50 Hz
Shock: 15 G, 11 ± 1 ms
Relative Humidity: 1
Altitude: 70, 000 ft
