LM-1G18G-15-25W-SMF Active

High Power Limiter

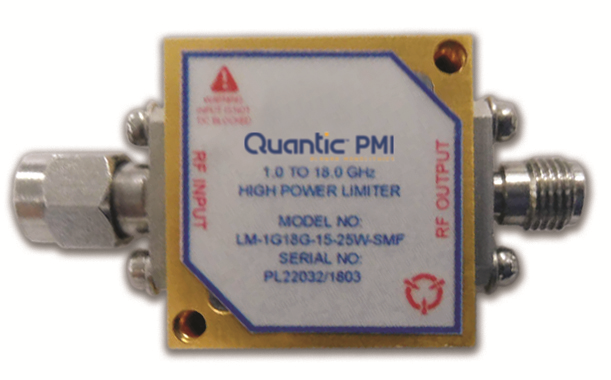

Quantic PMI Model No. LM-1G18G-15-25W-SMF is a high-power limiter that operates over the 1.0 to 18.0 GHz frequency range. This model is capable of handling an input power of 25 Watts CW housed within a compact 1.00" x 1.00" x 0.40" package outfitted with field replaceable SMA male connectors.

Product Specifications

General Parameters:
Status: Active
Frequency: 1.0 to 18.0 GHz
Frequency Min: 1 GHz
Frequency Max: 18 GHz
Insertion Loss: 2.5 dB Max
Insertion Loss (Measured): 2.5 dB Max - Measured 1.9 dBm
Input/Output VSWR: 2.0:1 Max
VSWR (Measured): 2.0:1 Max - Measured 1.99:1/1.98:1
Peak Power: 250 Watts Max (@10% Duty Cycle & 40 µs Pulse Width
Input Power: 25 Watts CW Max
Leakage Level: +15 dBm Typ
RF Leakage: +17 dBm Typ - Measured 20.20 dBm
Recovery Time: 100 ns Max - Measured 30.12 ns
Finish: Gold Plated
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105B Cond. B
Temperature Cycle: MIL-STD-202, Method 107A Cond. A
