| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.15 to 5 |
|---|
| Frequency Min (GHz): | 0.15 |
|---|
| Frequency Max (GHz): | 5 |
|---|
| Insertion Loss (dB): | 2 dB Max (0.15 to 0.3 GHz)
1.5 dB Max (0.3 to 5 GHz) |
|---|
| Input/Output VSWR: | 1.70:1 dB Max |
|---|
| Power Handling: | 200 Watts CW (+53 dBm) Typ
2kW Peak Power (+63 dBm) Typ |
|---|
| RF Leakage (dBm): | +20 Typ |
|---|
| P1dB: | +6 dBm Min |
|---|
| Recovery Time: | 100 ns Max |
|---|
| P1dB Limiting Threshold (dBm): | +6 Min |
|---|
| Connectors In/Out: | 0.015" Diameter RF Pins |
|---|

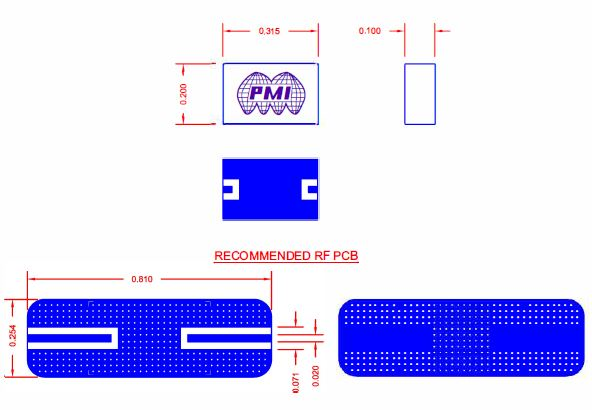

| Size: | 0.315" x 0.20" x 0.1 O" (8mm x 5mm x 2.5mm) |
|---|
| Finish: | Gold |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C TO +85 °C |
|---|
| Non-Operating Temperature: | -55 °C TO +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 1070 COND. A |
|---|
