LM-150M5G-200CW-2KWPK-AGAL-NFF Active

Ultra-high Power Limiter

LM-150M5G-200CW-2KWPK-AGAL-NFF
Product Feature

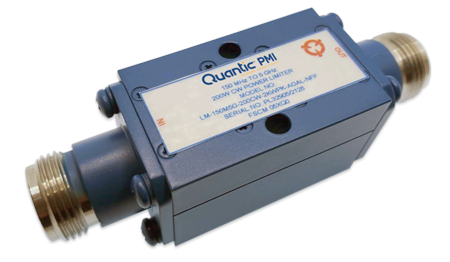

Quantic PMI Model LM-150M5G-200CW-2KWPK-AGAL-NFF is an ultra-high power limiter operating in the frequency range 150 MHz to 5 GHz, with 200 W of CW power handling (+53 dBm), and peak power typically 2 kW (+63 dBm), 25 µs PW, 5% duty cycle. Package size is 1.5" x 1" x 1" with Type N female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.15 to 5
Frequency Min (GHz): 0.15
Frequency Max (GHz): 5
Insertion Loss (dB): 2 dB Max (0.15 to 0.3 GHz)
1.5 dB Max (0.3 to 5 GHz)
Input/Output VSWR: 1.9:1 Max
Power Handling: 200 W CW (53 dBm) Typ
2 kW Peak Power (63 dBm) Typ
Input Power: 200 W CW (53 dBm) Typ
2 kW Peak Power (63 dBm) Typ
(25 µs PW, 5% Duty Cycle)
RF Leakage (dBm): 20 Typ
P1dB: 6 dBm Min
Recovery Time: 100 ns Max
P1dB Limiting Threshold (dBm): 6 Min
Connectors In/Out: Type N (F)
Size: 1.5" x 1" x 1"
Finish: Blue Paint
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
