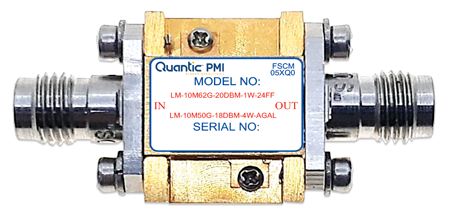

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.01 to 50 |
|---|
| Frequency Min (GHz): | 0.01 |
|---|
| Frequency Max (GHz): | 50 |
|---|
| Insertion Loss (dB): | 0.01 to 18 GHz = 1.50 Max
18 to 40 GHz = 2.30 Max
40 to 50 GHz = 2.50 Max |
|---|
| Input/Output VSWR: | 2.01 dB Max |
|---|
| Power Handling: | 1.5 Watts CW Max (0.02 to 12 GHz) |
|---|
| Input Power: | 10 Watts Peak Max (0.02 to 1 GHz)
6 Watts Peak Max (4 GHz to 8 GHz)
4 Watts Peak Max (12 GHz to 18 GHz)
(Pw 1 µs, 1 % Duty Cycle) |
|---|
| RF Leakage (dBm): | +22 dB Typ |
|---|
| Recovery Time: | 100 ns Max |
|---|
| P1dB Limiting Threshold (dBm): | +16 Typ |
|---|
| Connectors In/Out: | 2.4mm Female |
|---|
| Finish: | Gold Plated |
|---|
| Peak Input Power: | 10 Watts Peak Max (20 MHz to 1 GHz)
6 Watts Peak Max (4 GHz to 8 GHz)
4 Watts Peak Max (12 GHz to 18 GHz)
(Pw 1 µs, 1 % Duty Cycle) |
|---|
| Insertion Loss @ -10 dBm Input Power: | 10 MHz to 18 GHz = 1.50 dB Max
18 to 40 GHz = 2.30 dB Max
40 to 50 GHz = 2.50 dB Max |
|---|
| VSWR @ -10 dBm Input Power: | 2.0:1 Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C TO +85 °C |
|---|
| Non-Operating Temperature: | -65 °C TO +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107A COND. A |
|---|
