LM-10M40G-15DBM-4W-AGAL Active

Broadband High Power Limiter

Buy Now
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LM10M40G_14DBM_4W_AGAL_13703348_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LM_10M40G_15DBM_4W_AGAL_Assemblies_7419734_400.jpg
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LM_10M40G_15DBM_4W_AGAL_chip_31635061_400.png
Product Feature

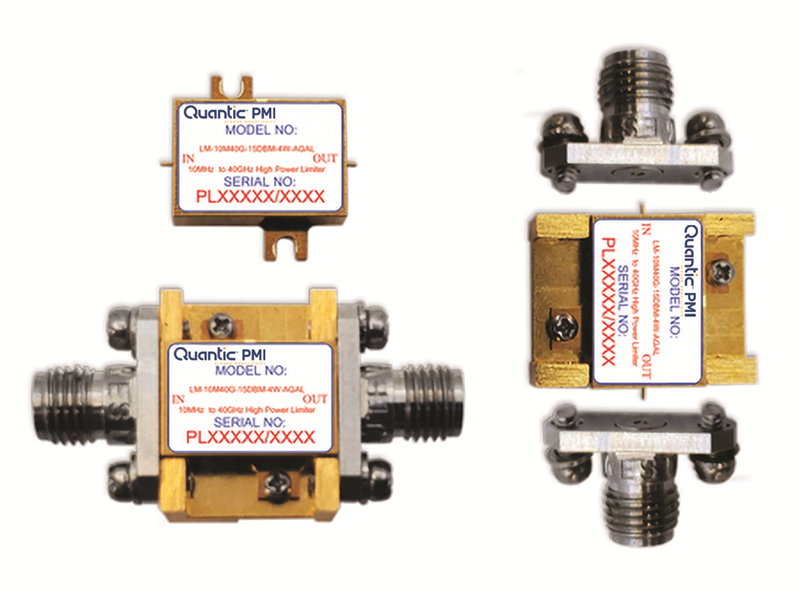

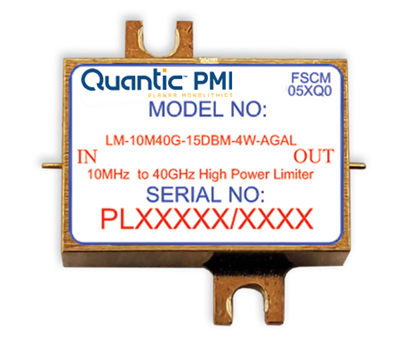

Quantic PMI Model LM-10M40G-15DBM-4W-AGAL is a High Power Limiter with a frequency range of 0.01 to 40 GHz. This unit has an insertion loss of 2.21 dB, a VSWR of 1.74:1, a flat leakage power of +15 dBm, a P1dB of +7 dBm, a recovery time of 100 ns, and a power handling of 5 W. The housing size is 0.53" x 0.70" x 0.26" with 2.92mm female connectors. 2-IN-1 - Dual Use Connectorized or Surface Mount.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.01 to 40 GHz
Frequency Min (GHz): 0.01
Frequency Max (GHz): 40
Insertion Loss (dB): 1 to 3.20
Input/Output VSWR: 2.0:1
Power Handling: 5 W CW Max
Input Power: 4 to 25 Watts
RF Leakage (dBm): 0.02 to 1 GHz: +22 Max
1 to 4 GHz: +20 Max
4 to 8 GHz: +18 Max
8 to 12 GHz: +15 Max
12 to 18 GHz: +13 dBm Max
20 to 28 GHz: +13 Max
28 to 32 GHz: +12 Max
32 to 40 GHz: +12 Max
Recovery Time: 100 ns Max
P1dB Limiting Threshold (dBm): +7 Min
Connectors In/Out: 2.92mm Female - Removable
Size: 0.53” X 0.7” X 0.26”
Finish: Gold Plated
Peak Input Power: 25 W Peak Max (0.02 to 12 GHz)
20 W Peak Max (18 GHz)
(1 µs Pw, 1% Duty Cycle)
Insertion Loss @ -10 dBm Input Power: 0.01 to 8 GHz: 1.00 dB Max
8 to 18 GHz: 1.50 dB Max
18 to 40 GHz: 3.20 dB Max
VSWR @ -10 dBm Input Power: 2.0:1 Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204D Cond B
Shock: MIL-STD-202, Method 213B Cond B
Altitude: MIL-STD-202, Method 105C Cond B
Temperature Cycle: MIL-STD-202, Method 107A Cond A
