LM-10M37G-15DBM-10W-AGAL Active

High-Power Limiter

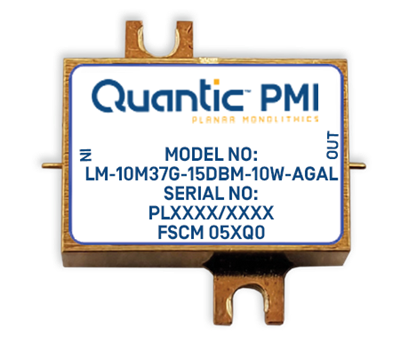

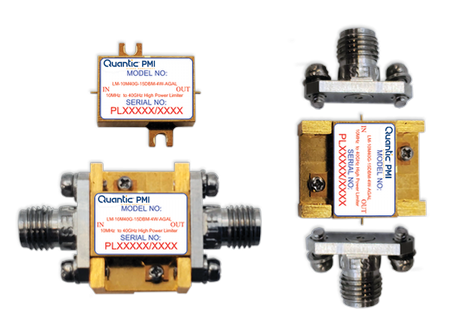

2-IN-1 - Dual Use Connectorized or Surface Mount

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LM_10M37G_15DBM_10W_AGAL_chip_7683661_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LM_10M37G_15DBM_10W_AGAL_COMB_58823664_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LM_10M37G_15DBM_10W_AGAL_70050117_400.jpg
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LM_10M40G_15DBM_4W_AGAL_Assemblies_49951767_400.png
Product Feature

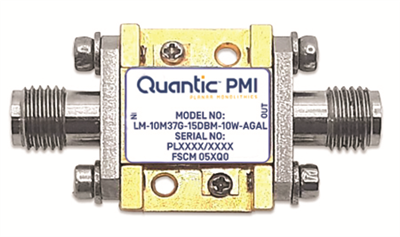

Quantic PMI Model LM-10M37G-15DBM-10W-AGAL is a passive high-power limiter that operates in the frequency range of 10 MHz to 37 GHz, this model can handle an input power of 25 to 10 Watts CW (200 MHz - 18 GHz) and 50 to 40 Watts pulse peak power (20 MHz - 18 GHz), with 1 µs PW, 1% duty cycle, this limiter uses 2.92 female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency: 0.01 to 37.0 GHz
Frequency Min: 0.01 GHz
Frequency Max: 37.0 GHz
Insertion Loss: 0.01 to 8 GHz: 1.00 dB Max
8 to 18 GHz: 2.00 dB Max
18 to 30 GHz: 2.70 dB Max
30 to 37 GHz: 4.30 dB Max
Input/Output VSWR: 1.8:1 Max
Input Power: 50 Watts Peak Max (0.02 to 12 GHz)
40 Watts Peak Max (18 GHz)
(1 µs Pw, 1% Duty Cycle)
Flat Leakage Power: 0.02 GHz: +18 dBm Typ
1 GHz: +20 dBm Typ
4 GHz: +16 dBm Typ
8 GHz: +13 dBm Typ
18 GHz: +10 dBm Typ
20 GHz: +10 dBm Typ
28 GHz: +10 dBm Typ
30 GHz: +10 dBm Typ
35 GHz: +10 dBm Typ
37 GHz: +8 dBm Typ
P1dB: +6 dBm Min
Recovery Time: 150 ns Typ
Connectors In/Out: 2.92 Female
Finish: Gold Plated
Peak Input Power: 50 Watts Peak Max (20 MHz to 12 GHz)
40 Watts Peak Max. (18 GHz)
(1 µs Pw, 1% Duty Cycle)
VSWR @ -10 dBm Input Power: 1.8:1 Max
Environmental Ratings:
Operating Temperature: -55 °C TO +85 °C
Non-Operating Temperature: -65 °C TO +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107A COND. A
