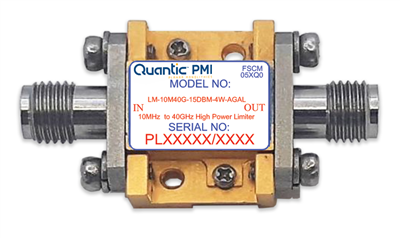

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.01 to 35 |
|---|
| Frequency Min (GHz): | 0.01 |
|---|
| Frequency Max (GHz): | 35 |
|---|
| Insertion Loss (dB): | 1.3 to 4 dB |
|---|
| Input/Output VSWR: | 2.0:1 |
|---|
| Power Handling: | 25 Watts CW Max (20 MHz)
10 Watts CW Max (1 GHz)
8 Watts CW Max (2 GHz)
5 Watts CW Max (4 GHz)
4 Watts CW Max (8 to 18 GHz) |
|---|
| Input Power: | 25 to 4 Watts CW |
|---|
| RF Leakage (dBm): | 0.02 to 2 GHz: +18 Typ
2 to 4 GHz: +18 Typ
4 to 8 GHz: +16 Typ
8 to 12 GHz: +12 dB Typ
12 to 18 GHz: +10 Typ
20 to 28 GHz: +10 Typ
28 to 35 GHz: +10 Typ |
|---|
| Recovery Time: | 150 ns Typ |
|---|
| P1dB Limiting Threshold (dBm): | +8 Min |
|---|
| Size: | 0.53” X 0.7” X 0.26” |
|---|
| Peak Input Power: | 50 Watts Peak Max (20 MHz to 12 GHz)
40 Watts Peak Max (18 GHz)
(1 µs PW, 1% Duty Cycle) |
|---|
| Insertion Loss @ -10 dBm Input Power: | 10 MHz to 8 GHz = 1.30 dB Max
8 to 18 GHz = 2.30 dB Max
18 to 25 GHz = 2.60 dB Max
25 to 35 GHz = 4.0 dB Max |
|---|
| VSWR @ -10 dBm Input Power: | 2.0:1 Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107A COND. A |
|---|
