LM-10M2D5G-100CW-1KWP-SFF-TH Preliminary

RF Limiter

Product Feature

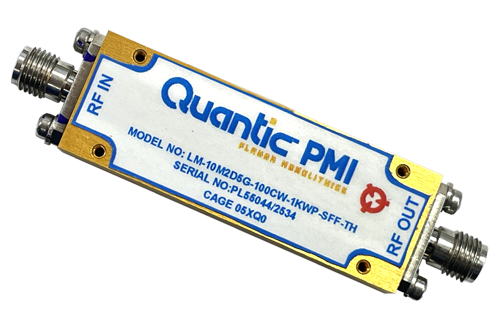

Quantic PMI Model LM-10M2D5G-100CW-1KWP-SFF is a RF limiter that operates in the 0.01 to 2.5 GHz frequency range. This limiter can handle 100 W CW and 1 kW peak (1% duty cycle, 1 µs maximum pulse width) input power and provides a maximum leakage of +13 dBm CW input. This module has a low insertion loss of 0.5 dB and a recovery time of 2 µs typical.  Package size is 1.86" x 0.65" x 0.38" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.01 to 2.5 GHz
Frequency Min (GHz): 0.01
Frequency Max (GHz): 2.5
Insertion Loss (dB): 0.8 Max
Input/Output VSWR: 1.3:1 Max
Peak Power: 1 kW peak (1% duty cycle, 1 µs Max pulse width)
Input Power: 100 W CW
RF Leakage (dBm): 0 Min, +13 Max @ 10 W CW
Recovery Time: 2 µs Typ
P1dB Limiting Threshold (dBm): 0
Impedance: 50 Ohm
Connectors In/Out: SMA female

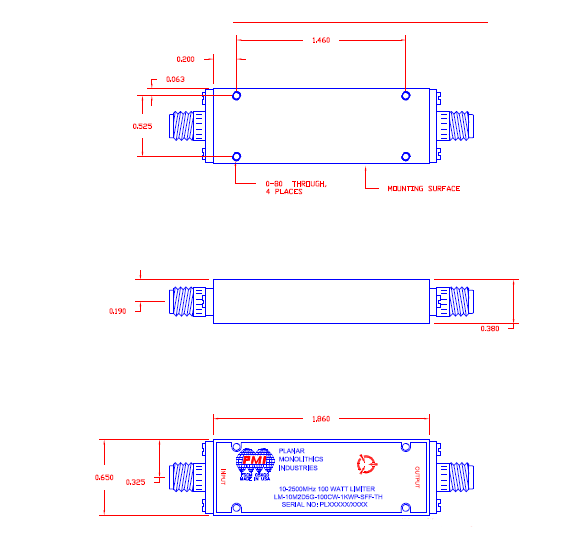

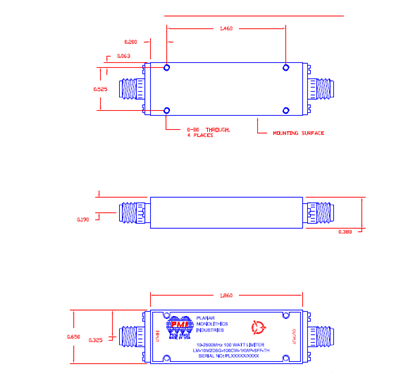

Size: 1.86" x 0.65" x 0.38"
Finish: Gold Plated
Environmental Ratings:
Constant Acceleration: MIL-STD-883, Method 2001 A (Y1 Axis)
External Visual: MIL-STD-883, Method 2009
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -60 ºC to +100 ºC
Stabilization Bake: MIL-STD-883, Method 1008 Cond. B
Thermal Cycle: MIL-STD-883, Method 1010 Cond. B
