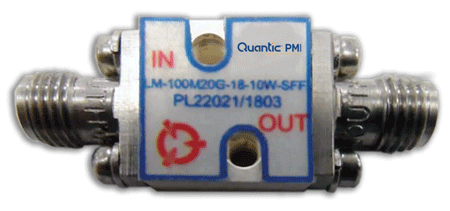

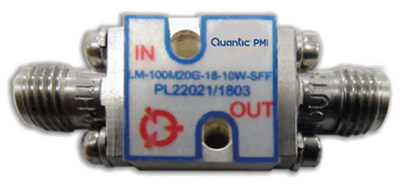

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 0.1 to 20 GHz |
|---|
| Frequency Min: | 0.1 GHz |
|---|
| Frequency Max: | 20 GHz |
|---|
| Insertion Loss: | 2 dB Max |
|---|
| Insertion Loss (Measured): | 1.80 dB |
|---|
| Input/Output VSWR: | 2.0:1 Max |
|---|
| VSWR (Measured): | 1.72:1 |
|---|
| Peak Power: | 10 W Pulsed, 100 us Pulse Width, 10% Duty Cycle |
|---|
| Average Power: | 1 W CW |
|---|
| Input Power: | 10 W Pulsed, 100 us Pulse Width, 10% Duty Cycle, 1 W CW |
|---|
| RF Leakage: | 20.5 dBm Max |
|---|
| Recovery Time: | 115 ns |
|---|
| Connectors In/Out: | SMA |
|---|
| Size: | 0.50" x 0.50" x 0.22" |
|---|
| Finish: | PAINTED BLUE |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC Operating |
|---|
| Non-Operating Temperature: | -40 ºC to +85 ºC Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
