LM-0118-10-1W-SHS-2-M Active

High power Limiter

LM-0118-10-1W-SHS-2-M
Product Feature

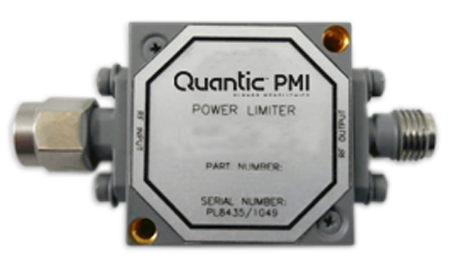

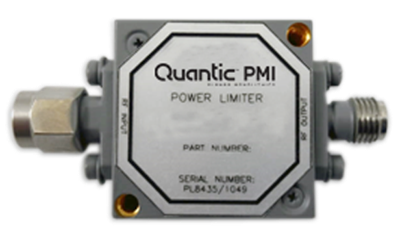

Quantic PMI Model LM-0118-10-1W-SHS-2-M is a high power limiter that operates from 0.1 to 18 GHz. This unit handles 100 watts of peak power with a pulse width of 1 µs.  Housing size is with SMA male / female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.1 to 18
Frequency Min (GHz): 0.1
Frequency Max (GHz): 18
Insertion Loss (dB): 2 dB Max, 1.5 Typ
Input/Output VSWR: 2.0:1 Max
Peak Power: 100 W
Input Power: 100 W Peak
RF Leakage (dBm): +14 Max, +10 Typ
Pulse width: 1 µs
Connectors In/Out: SMA (M/F)
Finish: Painted Blue
Weight: 1.5 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
