JTIDS-0001-SFM

Ultra-small Band Reject Filter

Product Feature

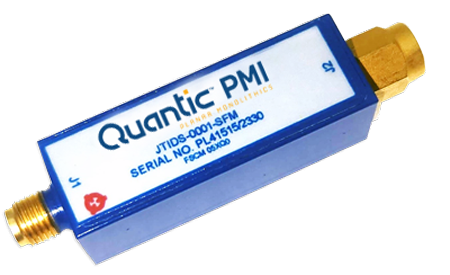

Quantic PMI Model JTIDS-0001-SFM is an ultra-small band reject filter centered at 1085MHz. This filter rejects frequencies from 960 to 1210 MHz and was specifically designed for Military JDITS applications.

Product Specifications

General Parameters:
Status: Active
Center Frequency, Fo: 1085 MHz
Notch Bandwidth: 250 MHz
Passband Insertion Loss: 6.0 dB
Passband VSWR: 2.0:1
Rejection: -40 dBc @ 960 to 1210MHz
Size: 1.4"L x 0.5"W x 0.5"H
Connectors In/Out: SMA (F/M)
Environmental Ratings:
Temperature: -40 ºC to +85 ºC
Non-Operating: -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
