IQM-2G18G-SFF Preliminary

2-18 GHz I/Q Mixer

Product Feature

Quantic PMI Model IQM-2G18G-SFF is an I/Q mixer which operates over the frequency range of 2 GHz to 18 GHz. This model offers an IF bandwidth of DC to 3 GHz.  Housing size is 0.80" x 0.80" x 0.369" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 2 to 18 GHz
Frequency Min: 2 GHz
Frequency Max: 18 GHz
Connectors: SMA Female

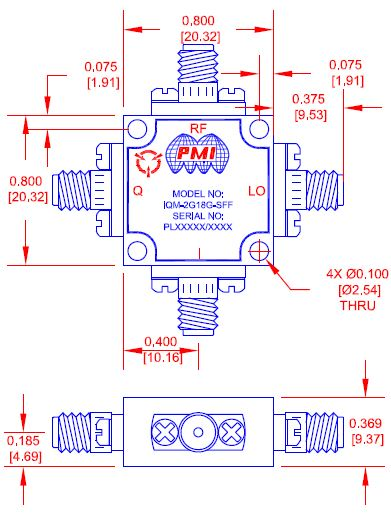

Size (Excluding Connectors): 0.80" x 0.80" x 0.369"
RF VSWR: 2.0:1 Typ
LO VSWR: 2.5:1 Typ
LO-RF Isolation: 58 dB Typ
LO-IF Isolation: 28 dB Typ
Finish: Painted Blue
Input 1 dB Compression Point: 2 dBm (I/Q Upconversion)
Amplitude Balance: 0.5 dB
Phase Balance: 5°
Environmental Ratings:
Temperature (Operating): -55 °C to +100 °C
Temperature (Storage): -65 °C to +125 °C
Vibration: MIL-STD-202, METHOD 2040 COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Humidity: MIL-STD-202, METHOD 103B COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
