| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 3.15 to 3.25 |
|---|
| Frequency Min (GHz): | 3.15 |
|---|
| Frequency Max (GHz): | 3.25 |
|---|
| Insertion Loss (dB): | 1 dB Max @ <=-20 dBm |
|---|
| Input/Output VSWR: | 1.925:1 Min @ <= -20 dBm |
|---|
| Input Power: | 5 dB Typ (1 dB compression point)
220 W Max peak incident power
10% Max duty cycle, 50 µs Max pulse width |
|---|
| RF Leakage (dBm): | 14 Max |
|---|
| Recovery Time: | 1 us Max |
|---|
| Return Loss: | 10 dB Min @ <= -20 dBm |
|---|
| I/P 1 dB Compression Point: | 5 dB Typ |
|---|
| Max Peak Incident Power: | 220 W |
|---|
| Max Duty Cycle: | 10% |
|---|
| Max Pulse Width: | 50 µs |
|---|
| Rise/Fall Time: | 1 µs |
|---|
| Spike Leakage Energy: | 0.1 erg Typ |
|---|

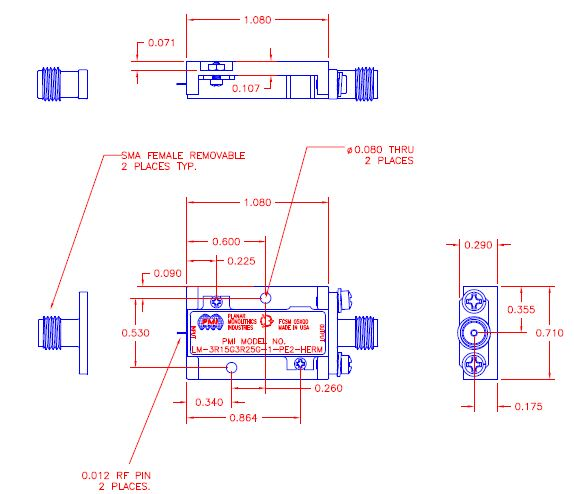

| I/O RF Connection & Package: | Drop-In Type (Without removable SMA coaxial connectors and removable carrier housing) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -15 ºC to +60 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
