HP0R5G-18G-CD-SMM Preliminary

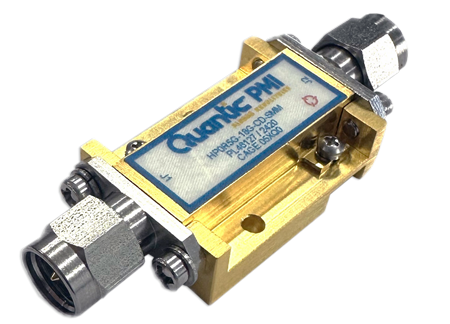

Quantic PMI Model No. HP0R5G-18G-CD-SMM is a a high pass filter having a passband of 0.5 to 18 GHz. Cut-Off Frequency is 0.5 GHz with a passband insertion loss of 2.0 dB from 1 to 16 GHz.  This model provides 40 dB minimum rejection at 0.3 GHz. Package size is 1.00” x 0.71” x 0.32” and contains SMA (M) Removable connectors.  Can be used in surface mount or connectorized applications.

Product Specifications

General Parameters:
Status: Preliminary
Passband: 0.5 to 18 GHz
Cut-Off Frequency: 0.5 GHz
Passband Insertion Loss: 0.5 GHz: 5 dB Max
1 to 16 GHz: 2 dB Max
18 to 16 GHz: 3 dB Max
Passband VSWR: 2.0:1 Max
Rejection: 40 dB Min @ 0.3 GHz
Size: 1.00" x 0.71" x 0.32"
Connectors In/Out: SMA Male removalble
Finish: Gold Plated
Weight: 1 oz Typ
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
