GTSC-22-2M18G-8R0-13-SFF-EQM Active

Additional Documents

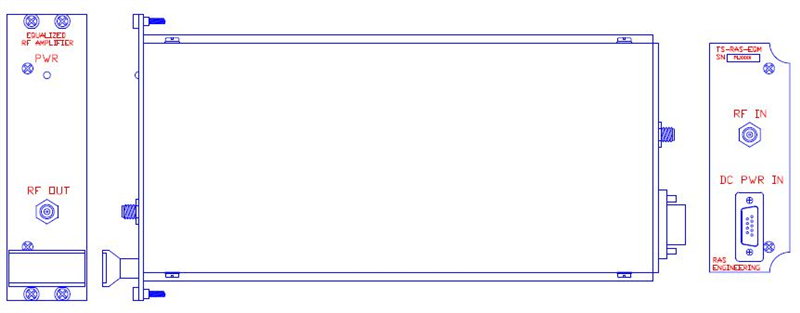

PMI Model No. GTSC-22-2M18G-8R0-13-SFF-EQM is an amplifier that operates over the frequency range of 2 MHz to 18.0 GHz.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 0.002 to 18.0 GHz
Frequency Min: 0.002 GHz
Frequency Max: 18.0 GHz
Gain: Cable Correction Curve
OP1dB: +10 dBm min. @ 18.0 GHz
VSWR In/Out: 2.0:1
DC Voltage Supply: +15 V
DC Current Draw: 350 mA max.
