GMTA-1005 Active

Threshold Detector

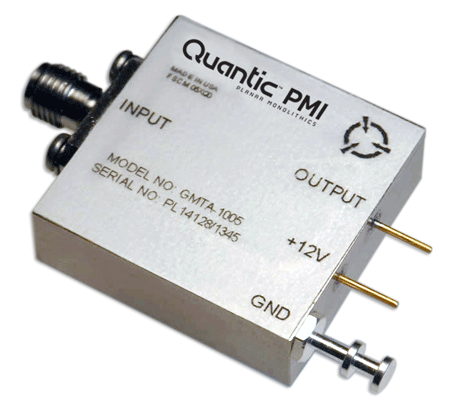

Quantic PMI Model GMTA-1005 is a threshold detector designed to operate over the frequency range of 8 to 18 GHz. It has a fixed threshold level of -42 dBm with threshold stability of ±3.0 dBm over frequency and temperature.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 8 GHz
Frequency Max: 18 GHz
Threshold: Fixed
Detected Output Type: TTL
Size: 1.50 x 1.00" x 0.37"
Frequency Range: 8 to 18 GHz
VSWR: 2.5:1 @ Pin = -10 dBm - Measured 1.78:1
Finish: Electroless Nickel Plate
Power Supply: +12 VDC @ 200 mA Max - Measured 48 mA
Threshold Level: -42 dBm @ +25 °C - Measured -41 dBm
Threshold Setting Stability: +/-3.0dB over frequency and temperature
Detected Output: TTL
Maximum RF Input: +1 0dBm
Response Time: 100 µs - Measured 22 µs
Environmental Ratings:
Operating Temperature: 0 ºC to +85 ºC
Non-Operating Temperature: -62 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
