GMPA-1001 Active

L Band Power Amplifier

GMPA-1001
Product Feature

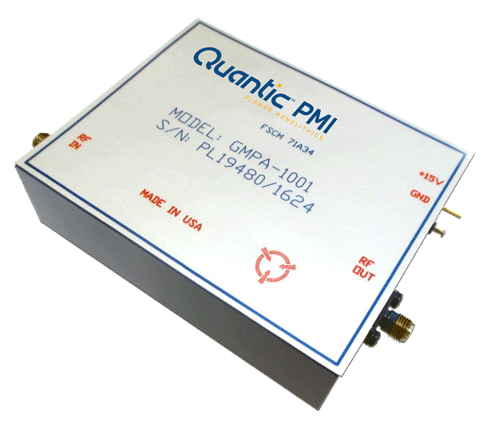

Quantic PMI Model GMPA-1001 is an L Band power amplifier which operates in the 0.4 to 0.5 GHz frequency range providing a gain of 40 dB maximum with a noise figure of 8 dB and an power output of over 5 W.  Package size is 4.0" x 3.0" x 1.0" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.4 to 0.5
Frequency Min (GHz): 0.4
Frequency Max (GHz): 0.5
Gain (dB): 40 dB Min
Gain (dB) - Measured: 40 dB Min - Measured 43.25 dB,
45 dB Max - Measured 44.85 dB
Noise Figure (dB): 8 dB Max
VSWR In/Out: 2.0:1 - Measure 1.7:1
OIP3: 45 dBm Typ
OPsat: 37 dBm Min - Measured 37.1 dBm
RF Input Power: 20 mW CW Max
DC Voltage: +14 to +15.5 VDC
DC Current Draw: 3.2 A Typ., 3.6 A Max
Gain Variation Over Temperature: ±1 dB Max @ Room Temp.
Connectors: SMA Female
Size: 4.0" x 3.0" x 1.0"
Finish: Electroless Nickel Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -54 ºC to 85 ºC
Temperature (Non-Operating): -57 ºC to +125 ºC
