FD-0518-10-48-OPT3R5G5R5G Active

Frequency Discriminator

FD-0518-10-48-OPT3R5G5R5G
Product Feature

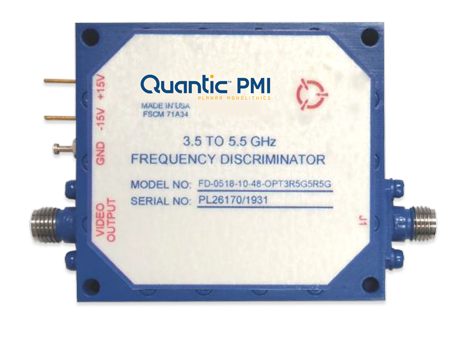

Quantic PMI Model FD-0518-10-48-OPT3R5G5R5G is a 3.5 to 5.5 GHz Frequency Discriminator that provides a video output of 1 V/GHz and has an accuracy of ±0.2 GHz. This model has a rise time is <20 ns and operates into a 100 Ω video load. This model operates on ±15 VDC with a housing that measures 2.0" x 1.82" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 3.5 to 5.5
Frequency Min (GHz): 3.5
Frequency Max (GHz): 5.5
Input VSWR: 2.0:1 Max, 1.5:1 Typ
Discriminator Accuracy (GHz): ±0.2 GHz
RF Input Power, Survival: 15 dBm
Video Output Slope: 100 mV/GHz
Video Impedance: 100 Ohm Nom
Video Output Rise Time: 20 ns
Power Minus: -12 to -15 VDC @ -75 mA
Operating Input Power: 10 dBm Nom, ±0.1 dBm
Power Plus: +12 to +15 VDC @ +75 mA
Connectors: SMA Female
Size: 2.00" x 1.82" x 0.50"
Weight: 4 oz Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Storage Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
