FD-0518-10-1218

Frequency Discriminator

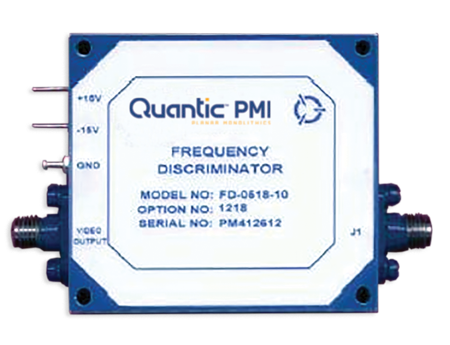

Model No.: FD-0518-10 Option 1218 is a 12 to 18 GHz Frequency Discriminator having a VSWR of 2.0:1 Maximum and 1.5:1 Typical and a Frequency Discriminator Accuracy of ±200 MHz.

http://www.planarmonolithics.com/products/FD-0518-10-1218.htm

Product Specifications

General Parameters:
Status: Active
Frequency Min: 12 GHz
Frequency Max: 18 GHz
Input VSWR: 2.0:1 Max, 1.5:1 Typ
Size: 2.00" x 1.82" x 0.50"
Frequency Discriminator Accuracy: ±200 MHz
RF Input Power, Survival: +15 dBm
Video Output Slope: 50 mV/GHz
Video Impedance: 100 Ohms Nominal
Video Output Rise Time: 20 ns
Power Minus: -15 VDC @ -75 mA
Power Plus: +15 VDC @ +75 mA
Operating Input Power: +10 dBm Nom, ±0.1 dBm
Weight: <4 Ounces
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC Operating
Storage Temperature: -65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
