EQ-2G18G-10DB-P-SMF Preliminary

PMI Model No. EQ-2G18G-10DB-P-SMF is an equalizer that works from 2.0 to 18.0 GHz with a 10 dB slope to correct for cable loss.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 2.0 to 18.0 GHz
Frequency Min: 2 GHz
Frequency Max: 18 GHz
VSWR: 1.75:1 max.
Insertion Loss: 2.0 dB typ.
Slopes: 10.0 dB typ., 10 dB Typ @ 2.0 GHz, 0 dB Typ @ 18.0 GHz
Connectors In / Out: SMA Male/SMA Female

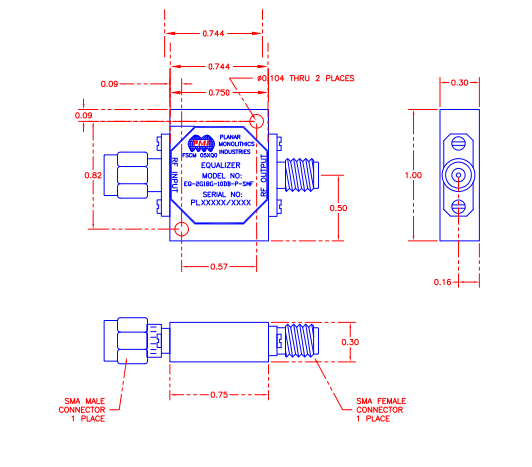

Size: 0.75" x 1.00" x 0.30"
Finish: Painted Blue
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. C
Vibration: MIL-STD-202F, Method 204D Cond. B
Temperature Cycle: MIL-STD-810F, Method 508.5
