DRO-1920-10DBM-SF Preliminary

Dielectric Resonator Oscillator

DRO-1920-10DBM-SF
Product Feature

Quantic PMI Model DRO-1920-10DBM-SF is a dielectric resonator oscillator that operates over the frequency range of 19 to 20 GHz that provides an output power of 10 dBm with manual tuning. Housing size is 1.75" x 1.73" x 1.1" with a SMA female connector and RFI solder terminal.

Product Specifications

General Parameters:
Status: Preliminary
Frequency (GHz): 19 to 20
Output Frequency, Fo (GHz): 19 to 20
Output Power (dBm): 10 dBm Min
Current: 200 mA
Power Out: 10 dBm Min
Tuning: Mechanical
Voltage: +15 VDC
Connectors: SMA Female

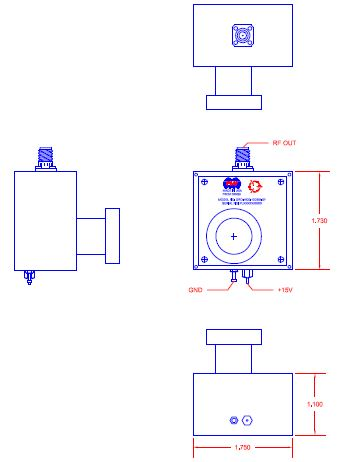

Size: 1.75" x 1.73" x 1.1"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Non-Operating): -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
