| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequencies, Fo: | CH 1 - 22.92 GHz
CH 2 - 35.08 GHz |

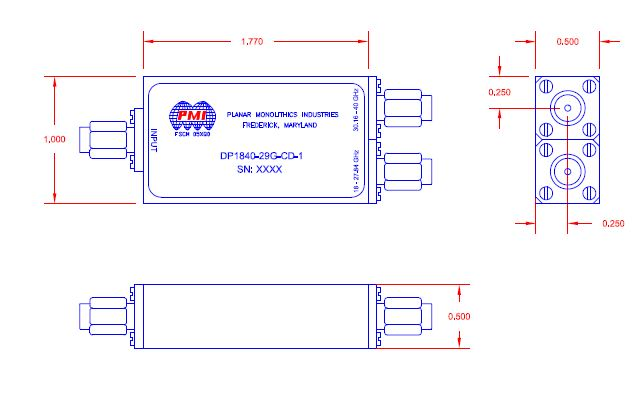

|---|
| Size: | 1.25" x 0.600" x 0.500" |
|---|
| Low Passband: | 18.0 to 27.84 GHz |
|---|
| High Passband: | 30.16 to 40.0 GHz |
|---|
| Weight: | 1 oz Typ. |
|---|
| Connectors: | 2.92mm (K) Male Connectors |
|---|
| Insertion Loss: | 1.5dB Max over 18-27.84 GHz
2dB Max over 30.16-40 GHz |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40°C to +70°C |
|---|
| Non-Operating Temperature: | -65°C to +125°C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond A |
|---|
