DIP-3R7-4R618-4R3-DC3R6
Preliminary

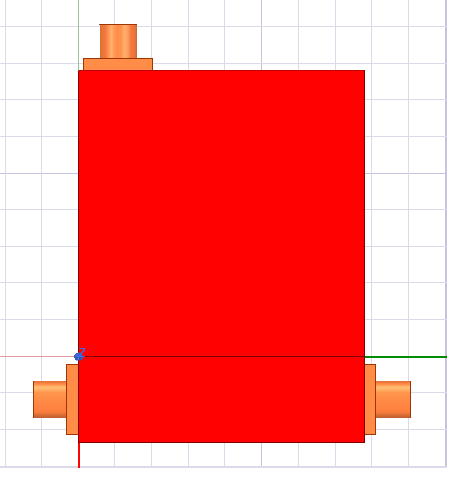

PMI Model: DIP-3R7-4R618-4R3-DC3R6 is a suspended substrate stripline diplexer with SMA Female connectors In/Out's
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequencies, Fo: | CH 1 - 1.85 GHz
CH 2 - 15.15 GHz |
|---|
| Size: | 2"X1.5"X0.6" |
|---|
| Low Passband: | DC to 3.7 GHz |
|---|
| High Passband: | 4.3 to 26.0 GHz |
|---|
| VSWR(J1): | 2.0:1 Max |
|---|
| Insertion Loss(J1): | 3 dB Max |
|---|
| Rejection(J1): | 60 dB Min |
|---|
| VSWR(J2): | 2.0:1 Goal |
|---|
| Insertion Loss(J2): | 3 dB Max |
|---|
| Rejection(J2): | 60 dB Min |
|---|
| Impedance (In/Out): | 50 O |
|---|
| Connectors: | SMA Female |
|---|
| Frequency Range: | DC to 40 GHz |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 to +85 deg C |
|---|
