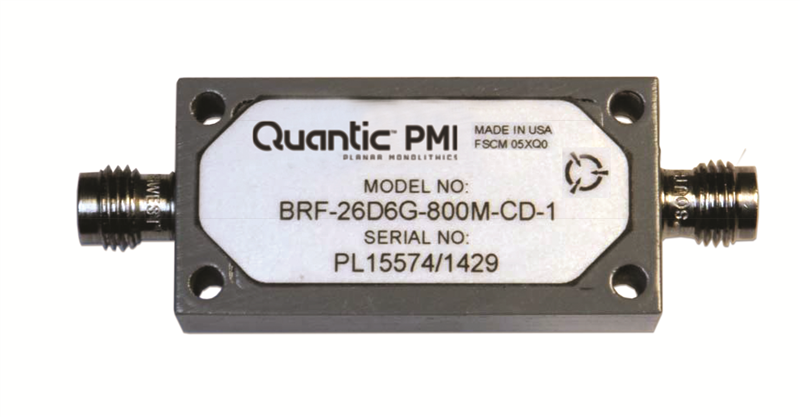

General Parameters: |
Status: | Active |
Center Frequency, Fo: | 11995 MHz, 39500 MHz |
Passband Insertion Loss: | Band 1: 4 dB Typ Band 2: 4 dB Typ |
Size: | 1.50" x 0.75" x 0.40" |
Connectors In/Out: | 2.4mm (F) |
Finish: | Painted Gray |
Notch: | -70 dB Typ from 26.2 to 27.0 GHz |
Power Handling of Notch Signal: | 10 W (+40 dBm) for 26.2 to 27.0 GHz |
Passbands: | Band 1: 10 MHz to 24.0 GHz Band 2: 31.0 to 48.0 GHz |
Passband Return Loss: | Band 1: 2.5:1 Typ Band 2: 2.5:1 Typ |
Power Handling of Passbands: | +10 dBm Max |
Fungus: | MIL-STD-202F, Method 508.2 |
Environmental Ratings: |
Temperature: | -55 °C to +85 °C |
Non-Operating: | -65 °C to +125 °C |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107 |
Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
