General Parameters: |
Status: | Preliminary |
Passband Insertion Loss: | 1.5 dB typ. (DC & 2700 to 18000 MHz), 3 dB typ. (2500 to 2700 MHz) |
Passband VSWR: | 2.0:1 |
Rejection: | 70 dB Min - from 0.98 to 1.2 GHz |

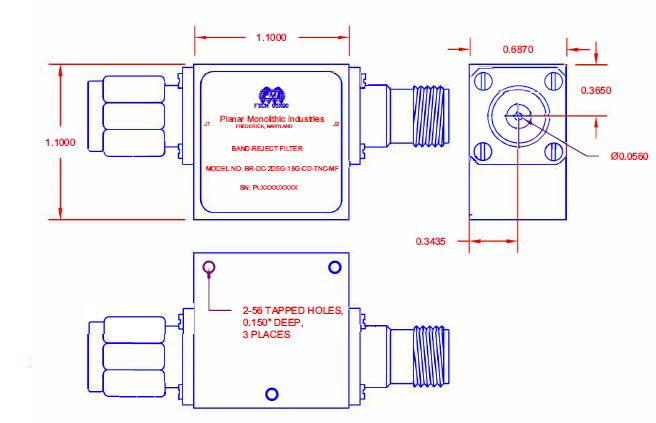

Size: | 1.10" (L) x 1.10" (W) x 0.687" (H) |
Connectors In/Out: | TNC Male/TNC Female |
Finish: | Painted Grey |
Passbands: | DC & 2.5 - 18 GHz |
Fungus: | MIL-STD-810C, Method 508.2 |
Environmental Ratings: |
Temperature: | -40°C to +80°C |
Non-Operating: | -65°C to +125°C |
Humidity: | MIL-STD-202F, Method 103B Cond B |
Shock: | MIL-STD-202F, Method 213B Cond B |
Vibration: | MIL-STD-202F, Method 204D Cond B |
Altitude: | MIL-STD-202F, Method 105C Cond B |
Temperature Cycle: | MIL-STD-202F, Method 107 |
Salt Fog: | MIL-STD-202F, Method 107D Cond A |
