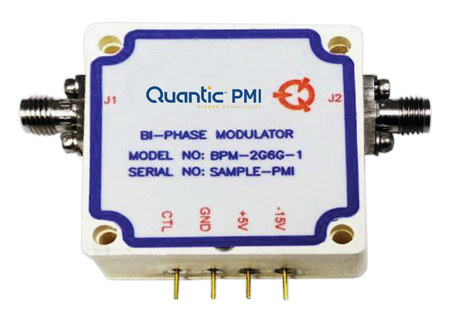

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 2 to 6 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Insertion Loss (dB): | 2.5 dB Max |
|---|
| Phase States: | 0° / 180º |
|---|
| VSWR: | 1.8:1 Max |
|---|
| Control Type: | TTL |
|---|
| Amplitude Error: | 1 dB Max Peak to Peak |
|---|
| Phase Error: | ±8º Max |
|---|
| Switching Time: | 50 ns Max |
|---|
| Input Power: | 27 dBm CW Max (Without Performance Degradation) |
|---|
| Power Supply: | +5 VDC @ 50 mA,
-15 VDC @ 20 mA |
|---|
| RF Connectors: | SMA Female - removable |
|---|
| Size: | 1.5" x 1.5" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
