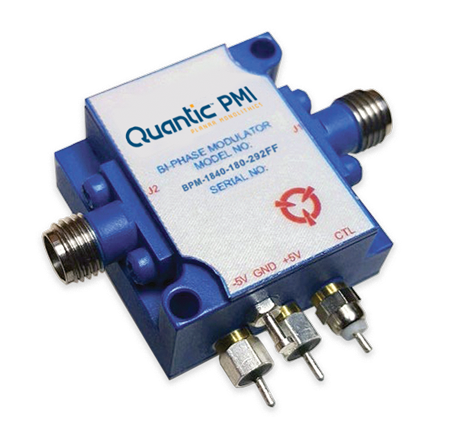

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 18 to 40 |
|---|
| Frequency Min (GHz): | 18 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Insertion Loss (dB): | 8 dB Typ |
|---|
| Phase States: | 0° / 180º |
|---|
| VSWR: | 2.0:1 goal, 3.0:1 Max |
|---|
| Control Type: | TTL |
|---|
| Impedance: | 50 Ohm |
|---|
| Amplitude Balance: | ±4 dB Typ |
|---|
| Phase Shift Control Input: | TTL "0" = 0°
TTL "1" = 180° |
|---|
| Power Supply: | +5 VDC @ 75 mA Max
-5 VDC @ 20 mA Max |
|---|
| Switching Speed: | 100 ns Max |
|---|
| Phase Variation: | ±40° Typ |
|---|
| Power Handling: | 20 dBm Operational |
|---|
| RF Connectors: | 2.92mm Female |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Storage): | -65 °C to +125 °C |
|---|
| Humidity: | Up to 90%, Non-Condensing |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Con.d B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
