AMP-28G30G-27-10-15-SFF Preliminary

Low Noise Amplifier

AMP-28G30G-27-10-15-SFF
Product Feature

Quantic PMI Model AMP-28G30G-27-10-15-SFF is a 28 to 30 GHz amplifier with a gain of 27 dB with a gain flatness of ±1.5 dB, a maximum noise figure of 2.5 dB, and a minimum OP1dB of 9 dBm. Package size is 0.91" x 0.7" x 0.365" with removable SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 28 to 30
Frequency Min (GHz): 28
Frequency Max (GHz): 30
Gain (dB): 27 dB Min
Gain Flatness (dB): ±1.5 dB Max
Noise Figure (dB): 2.5 dB Max
Input VSWR: 2.3:1 Max
Output VSWR: 2.3:1 Max
OP1dB (dBm): -9 dBm Min
RF Input Power: -9 dBm Min
DC Voltage: +15 VDC
DC Current Draw: 225 mA Nom

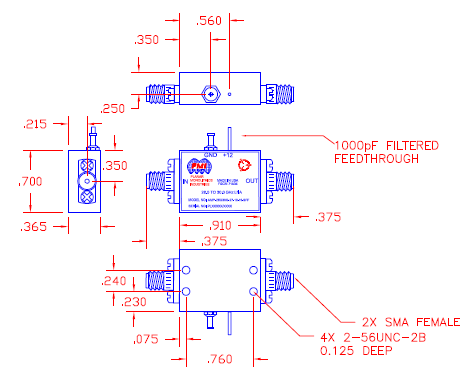

Size: 0.91" x 0.70" x 0.365"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -20 ºC to +70 ºC
Temperature (Non-Operating): -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
