6BR7D1G-100-CD-SS Active

Product Feature

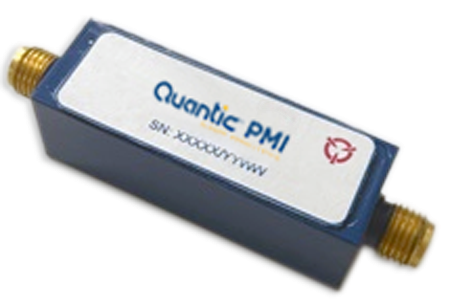

PMI Model Number 6BR7D1G-100-CD-SS is a Bandreject filter with SMA female connectors in and out. All filters will be machined and silver plated to provide the highest possible Q.

Product Specifications

General Parameters:
Status: Active
Center Frequency, Fo: 7100 MHz
Notch Bandwidth: 100 MHz @ 3 dB
Passband Insertion Loss: -0.5 dB Max.
Passband VSWR: 2.0:1 Max.
Rejection: -30 dB
Size: 1.90" x 0.50" 0.50"
Connectors In/Out: SMA Female
Environmental Ratings:
Temperature: -55°C to +85°C
Non-Operating: -65°C to +125°C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Salt Fog: MIL-STD-202F, Method 107D Cond. A
