General Parameters: |
Status: | Preliminary |
Passband: | DC to 425/475 MHz |
Cut-Off Frequency: | 500 MHz Min |
Input Power: | 30 dB |
Impedance: | 50 Ohms |
Passband VSWR: | 1.5:1 max |
Stopband Attenuation: | 70 dB |

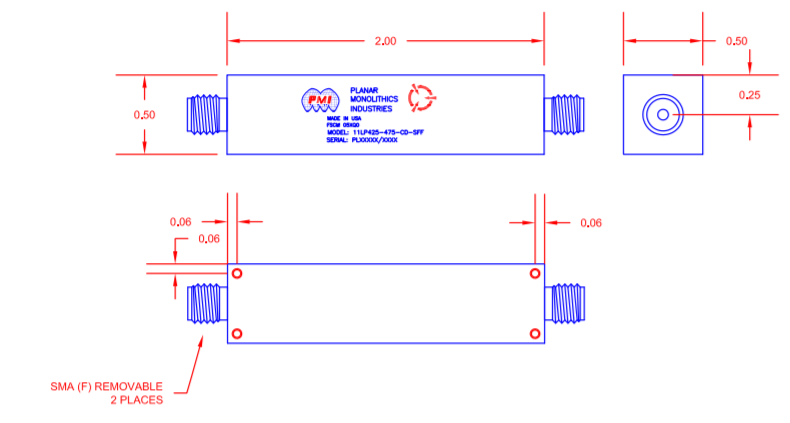

Size: | 2.00" x 0.50" x 0.50" |
Environmental Ratings: |
Temperature: | -55 to 85 Degree C |
Non-Operating: | -65 to 125 Degree C |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
Fungus: | MIL-STD-810C, Method 508.2 |
Temperature Cycle: | MIL-STD-202F, Method 107 |
