Single Pole - Twenty-Throw Switches (SP20T)

Quantic PMI offers a variety of Single Pole - Twenty-Throw Switches (SP20T) designs which can include operating frequency ranges up to 70 GHz; connector options; reflective and absorptive configurations; excellent isolation; low insertion loss; high power capabilities; hermetic sealing; military or space screening; amplitude & phase matching and dual use components for surface mount or connectorized applications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusReflective / AbsorptiveFrequency Min (GHz)Frequency Max (GHz)Insertion Loss (dB)Isolation (dB)Switching Speed

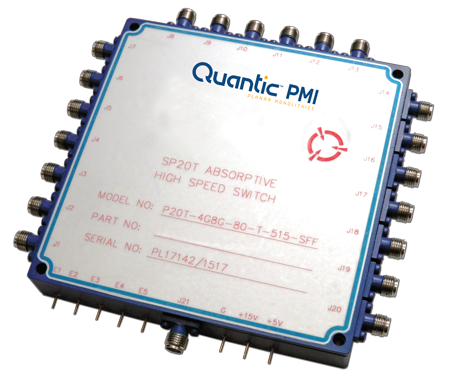

P20T-4G8G-80-T-515-SFF-HERM
Active		ActiveAbsorptive484 dB Max80 dB Min2 µs Max (50% TTL to 90% RF),
2 µs Max (10% RF to 90% RF)
P20T-4G8G-80-T-515-SFF-1
Preliminary		PreliminaryAbsorptive484 dB Max80 dB Min2 µs Max (50% to 90% RF),
2 µs Max (10% to 90% RF)
P20T-7R2G8R3G-35-28-SFF
Preliminary		Preliminary
-
7.28.310 dB Max @ C-Band35 dB Min between ports
-
P20T-7G18G-80-T-515-SFF-SP
Active		ActiveAbsorptive7185.5 dB Goal, 7.5 dB Max65 dB Min1 µs Max
P20T-4G8G-80-T-515-SFF
Active		ActiveAbsorptive484 dB Max80 dB Min2 µs Max (50% TTL to 90% RF),
2 µs Max (10% RF to 90% RF)
