Single Pole - Seven Throw Switches (SP7T)

Quantic PMI offers a variety of Single Pole - Seven Throw Switches (SP7T) designs which can include operating frequency ranges up to 70 GHz; connector options; reflective and absorptive configurations; excellent isolation; low insertion loss; high power capabilities; hermetic sealing; military or space screening; amplitude & phase matching and dual use components for surface mount or connectorized applications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusReflective / AbsorptiveFrequency Min (GHz)Frequency Max (GHz)Insertion Loss (dB)Isolation (dB)Switching Speed
P7T-SUM-40-C-SFF
Active		ActiveAbsorptive0.5183.1 dB Max40 dB Min20 MHz Max @ 50 ns PW up to 50% duty cycle (J1 - J5)
0.6 MHz Max (J6, J7)
P7T-0R8G18G-60-T-SFF-15MD-LD-2
Preliminary		PreliminaryAbsorptive0.8184.3 dB Max60 dB Min15 ns Max (Rise/Fall)
75 ns Max (Delay On/Off)
P7T-0R8G18G-60-T-SFF-15MD-LD
Preliminary		PreliminaryAbsorptive0.8184.3 dB Max60 dB Min15 ns Max (Rise/Fall)
75 ns Max (Delay On/Off)
P7T-0R8G18G-60-T-SFF-SMC-LD
Active		ActiveAbsorptive0.8184.3 dB Max60 dB Min15 ns Max (Rise/Fall)
75 ns Max (Delay On/Off)
P7T-8G18G-60-R-SFF
Preliminary		PreliminaryReflective8182.8 dB (8 to 12 GHz),
3.5 dB (12 to 18 GHz)		60 dB Min15 ns Max (Rise/Fall)
100 ns Max (Delay On/Off)
P7T-0R518G-60-T-515-SFF-MSN
Preliminary		PreliminaryAbsorptive0.5184.25 dB60 dB Min15 ns Max (Rise/Fall)
100 ns Max (Delay On/Off)
P7T-0R8G18G-60-T-SFF-SMC-1W
Preliminary		PreliminaryAbsorptive0.8184.3 dB Max60 dB Min15 ns Max
P7T-0R8G18G-60-T-SFF-SMC-PM
Active		ActiveAbsorptive0.8184.3 dB Max60 dB Min15 ns Max (Rise/Fall)
75 ns Max (Delay On/Off)
P7T-2G18G-60-T-1W
Active		ActiveAbsorptive2184.5 dB Max60 dB Min15 ns Max

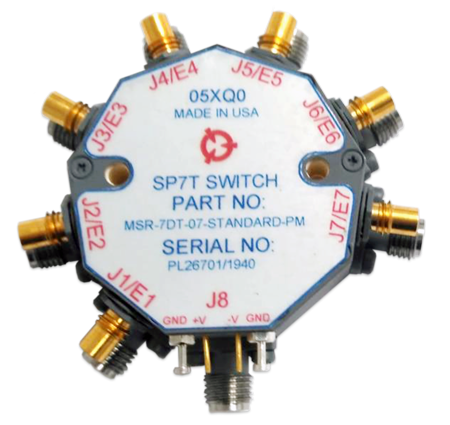

P7T-0R8G18G-60-T-SFF-SMC
Active		ActiveAbsorptive0.8184.3 dB Max60 dB Min15 ns Max (Rise/Fall)
75 ns Max (Delay On/Off)
