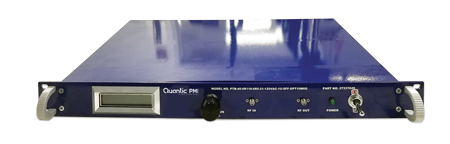

1U 19" Integrated Microwave Assemblies

Quantic PMI offers integrated microwave assemblies that provide high gain and feature integrated digitally controlled attenuators with ranges up to 60 dB.  The attenuation can be controlled via the external optical encoded knob or via RS-232 and Ethernet.  The amount of selected attenuation is displayed on the front panel LCD screen.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Features that are supp

Standard Features:

  • 6 foot power cord supplied
  • On / Off Power Switch with LED indicator
  • Attenuation level displayed on the LCD display
  • Attenuation control via front panel optical encoded knob or via RS-232 and Ethernet
  • Real-Time attenuation control

Available Options:

  • Ultra-Fine 0.25 dB/Step Attenuation Resolution
  • Internal High Speed Modulator
  • Other Gain Levels from 0 dB to 80 dB
  • Frequency Ranges from 0.01 to 40 GHz
  • Higher Output power levels up to +30 dBm
  • 220 VAC (European Compatible) Voltage Supplies

Standard Models:

Model NumberFrequency
Range (GHz)		Gain (dB)Gain Flatness (±dB)Noise
Figure (dB)		OP1dB
(dBm))		VSWR

Operating

Voltage

Housing
PTB-40-0R118-6R5-21-120VAC-1U-SFF
0.1 - 18403.56.5202.0:1115 VAC1U, 19"
PEC-50-0R118-6R5-18-120VAC-1U-SFF
0.1 - 18502.06.0182.0:1115 VAC1U, 19"
