RF Signal Distribution Systems - Built to your System Specification and Functionality

Quantic PMI RF Disribution Units are designed using a platform that contains three plug-and-play field-replaceable modules comprised of a power supply, module, a computer module and an RF module. Examples of the various applications for this configurable RF system can include airborne RF distribution units, broadband switch matrices, and RF attenuation system featuring internal computer-controlled linearization and touch-screen attenuation selection. This platform is also ideal for use with state-of-the-art up- and down-converters with integrated options such as linearized attenuation. In addition, the system can be configured as a high speed frequency synthesizer or a log amplifier with touch-screen log slope selection. With a multitude of functions within its capability, this module can be set up to meet many different functions.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Our ruggedized, military grade chassis products are built to meet your exact application needs.

Key Features:

  • Plug & Play Modular Design
  • 19" Rack Mount Chassis, 6U, 18" Deep
  • 6" Color LCD Touch Screen Display
  • 0.5 GHz Single Board Internal Processor
  • Linux or Windows Operating System
  • Removable Compact Flash Memory which contains all booting and operation software
  • Compatible with RS-232, RS-422 / 485, PECL, TTL and Ethernet
  • Front Panel Troubleshooting down to the component level
  • Internal Power monitoring of all components and modules
  • Internal noise source calibration feature
  • RF module internal temperature monitoring
  • Military and Commercial versions are available.
  • Built to meet your exact functionality requirements.

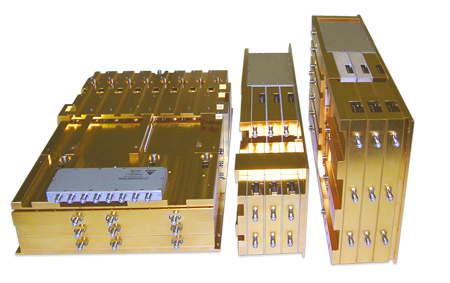

Internal RF Modules:

  • Blind mate assemblies reduce cables and increases performance
  • Internal control boards that are digitally controlled and contain current sensing components.
  • Ribbon cable with self-locking connectors for all voltage and control connections.
  • Ruggedized construction for airborne and extreme environments.

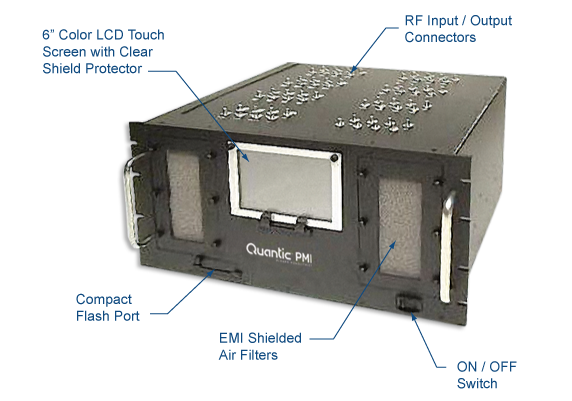

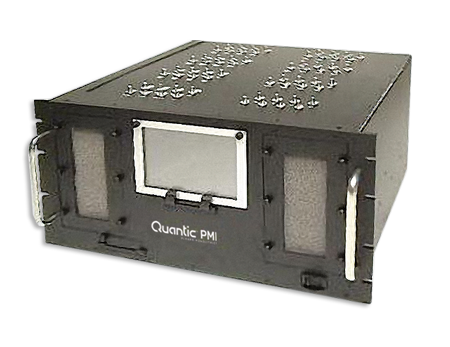

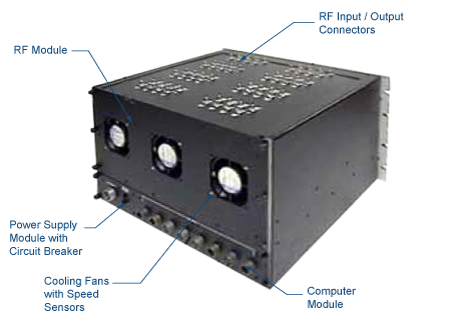

19" Ruggedized Chassis with Modular Construction:

RFDU Product Brochure - Click To View

Sample Functional Block Diagram
