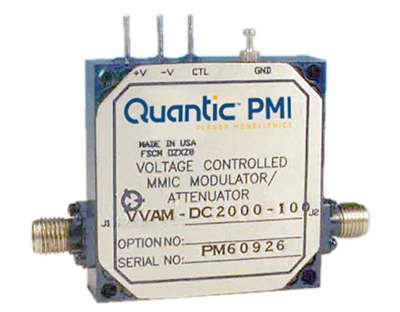

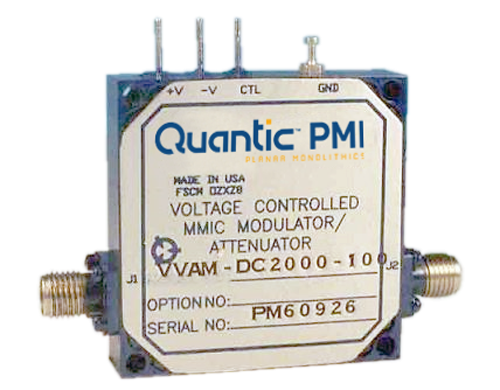

VVAM-DC2000-100 Active

Ultra Low Video Transient High Speed Voltage Variable Matched MMIC Attenuator/Modulator.

Additional Product Information under, http://www.planarmonolithics.com/products/VCAM-002000-90.htm

Product Specifications

General Parameters:
Status: Active
Frequency Min: DC
Frequency Max: 2.4 GHz
Insertion Loss: 7 dB Max
Attenuation: 78 dB - 104 dB
Control Type: Voltage
Dynamic Range: 100 dB
Switching Speed: 12 ns
VSWR: 2.0:1
Size: 1.5" x 1.5" x 0.4"
Rise and Fall Time: 20 ns maximum
Weight: <2 ounces
Environmental Ratings:
Operating Temperature: -55°C to 85°C
Non-Operating Temperature: -65°C to 125°C
Humidity: MIL-STD-202F, Method 103B Cond B
Shock: MIL-STD-202F, Method 213 Cond B
Vibration: MIL-STD-202F, Method 204 D Cond B
Altitude: MIL-STD-202F, Method 105C Cond B
Temperature Cycle: MIL-STD-202F, Method 107D Cond A
