VGA-20M1G-100W-DSUB Preliminary

High Power Variable Gain Amplifier

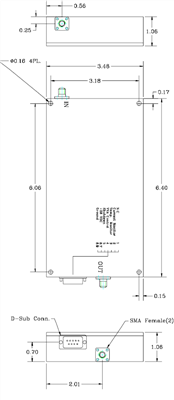

Quantic PMI Model VGA-20M1G-100W-DSUB is a high-power, variable gain amplifier that operates over the 0.02 to 1 GHz frequency range, provides a maximum gain of 48 ± 1 dB, and exhibits a gain flatness of ±2 dB maximum. Housing size is 6.40" x 3.40" x 1.06" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min (GHz): 0.02
Frequency Max (GHz): 1
Gain (dB): 48 ± 1 dB Max
VVA Range: 25 dB Min
Psat: 100 W Min
Input Power: 10 dBm Max
DC Supply Voltage: 28 VDC
Current Supply: 4.8 A Max
RF Connectors In/Out: SMA (F)
Gain Flatness: ±1.5 dB Typ
±2 dB Max
Size (Excluding Connectors): 6.40" x 3.40" x 1.06"

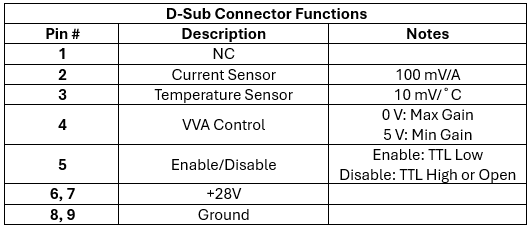

DC Connectors: 9-Pin Dsub
VSWR: 1.5:1 Max
Spurious: -70 dBc Max
Control Voltage: 0 (Max Gain) to 5 VDC (Min Gain)
Environmental Ratings:
Operating Temperature: -30 ˚C to +75 ˚C
Non-Operating Temperature: -40 ˚C to +95 ˚C
Humidity: 95% Max (Non-Condensing)
MIL-STD-810F
Vibration: 6.06 g RMS
MIL-STD-810F
Altitude: 10, 000 ft. (Operating)
