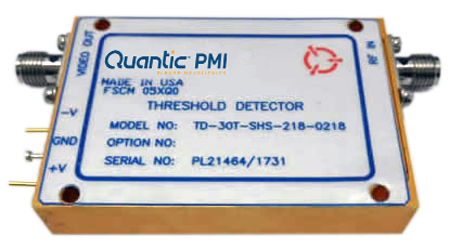

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | 0.2 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Threshold: | Fixed |
|---|
| Detected Output Type: | TTL |
|---|
| Size: | 2.20" x 1.50" x 0.40" |
|---|
| Frequency Range: | 0.2 to 18 GHz |
|---|
| VSWR: | 3.0:1 @ -20 dBm - Measured 2.9:1 |
|---|
| Weight: | 3 oz Max |
|---|
| Power Supply: | +15 VDC @ 100 mA Max - Measured 60 mA,
-15 VDC @ 100 mA Max - Measured 53 mA |
|---|
| Propagation Delay: | 15 ns Max - Measured 12.8 ns,
15 ns Max - Measured 7 ns |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
