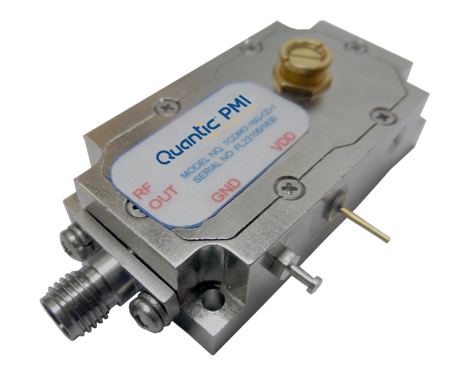

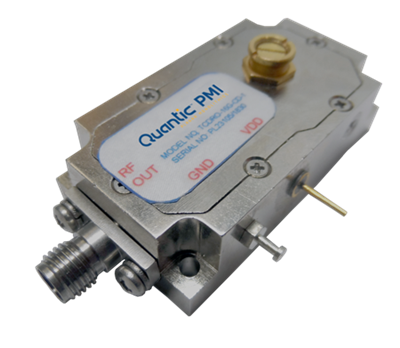

Quantic PMI Model TCDRO-16G-CD-1 is a Temperature Compensated Dielectric Resonator Oscillator with a center frequency of 16 GHz. This model provides a minimum output power of 18 dBm with all spurs held to -85 dBc and harmonics held to -25 dBc. The mechanical tuning frequency is ±10 MHz and the unit has a phase noise of -95 dBc/Hz. The unit requires +15 VDC with a maximum current draw of 200 mA and is supplied with SMA female connectors in a housing that measures 1.8" x 1.0" x 0.5".
