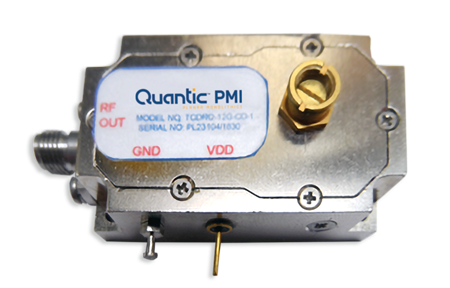

TCDRO-12G-CD-1 Active

Temperature Compensated Dielectric Resonator Oscillator

Buy Now

Quantic PMI Model TCDRO-12G-CD-1 is a Temperature Compensated Dielectric Resonator Oscillator with a center frequency of 12.0 GHz.  This model provides a minimum output power of +18 dBm with all spurs held to -60 dBc and harmonics held to -25 dBc.  The mechanical tuning frequency is ±10 MHz and the unit has a phase noise of -95 dBc/Hz.  The unit requires +15 VDC with a maximum current draw of 200 mA and is supplied with SMA female connectors in a housing that measures 1.80" x 1.00" x 0.50".

Product Specifications

General Parameters:
Status: Active
Frequency Range: 12.0 GHz
Tuning Range: ±10 MHz Min
Output Power: 18 dBm Min
Output Pwer Variation Over Temperature Range: ±1.0 dB Max
Frequency Accuracy: 0.1% Max
Frequency Pushing: 15 kHz/V Max
Frequency Pulling: 0.5 MHz PK-PK Max
Frequency Drift Temperature Coefficient: 0.8 ppm/°C
Harmonics: -25 dBc Max
Spurious: -85 dBc Min
Phase Noise @ 10 KHz: -90 dBc/Hz
Phase Noise @ 100 KHz: -95 dBc/Hz
Input Power: +15 ±0.5 VDC @ 200 mA Max
Connectors: SMA (F)
Weight: 3 oz Max
Size: 1.80" x 1.00" x 0.50"
Finish: Nickel Plated
Environmental Ratings:
Operating Temperature: -50 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond B.
Shock: MIL-STD-202F, Method 213B Cond B.
Vibration: MIL-STD-202F, Method 204D Cond B.
Altitude: MIL-STD-202F, Method 105C Cond B.
Temperature Cycle: MIL-STD-202F, Method 107D Cond A.
