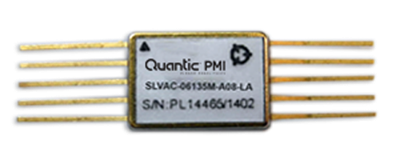

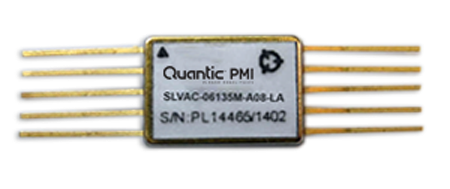

General Parameters: |
Status: | Active |
Frequency Range: | 0.6 to 1.35 GHz |
Frequency Min: | 0.6 GHz |
Frequency Max: | 1.35 GHz |
Logging Range: | -65 to +5 dBm |
Video Load: | 100 Ohms |
Log Slope: | 30 mV/dB |
Min., TSS: | -65 dBm |
Limited IF Output: | -18 dBm |
Voltage &, Current: | 30 mA @ +5 V, 170 mA @ -5 V |
Dynamic Range: | 65 dB |
Tangenital Sensitivity: | -65 dBm Min (-70 dBm Typ) |
Log Slope Variation with Frequency: | ±0.5 mV/dB Typ (over 80 MHz RF Bandwidth) |
Log Slope Variation with Temperature: | ±1 mV Typ |
Log Linearity: | ±1.2 dB Max (-60 dBm to 0 dBm), ±0.8 dB Typ , ±1.5 dB Max (-65 dBm to +5 dBm), ±1.2 dB Typ |
Maximum RF Input Power: | +10 dBm |
Input VSWR: | 1.8:1 Max (1.5:1 Typ) |
Output Voltage: | 2.7 V |
Rise Time: | 25 ns |
Fall Time: | 30 ns |
Log Video Output Settling Time: | 40 ns |
Propagation Delay: | 10 ns Max, 7 ns Typ |
DC Power Supply: | +5 VDC @ 30 mA (No Video Load) , -5 VDC @ 170 mA |
Size: | 0.395" x 0.280" x 0.090" |
Environmental Ratings: |
Temperature: | -55 °C to 85 °C |
Non-Operating: | -65 °C to 100 °C |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
