SDLVA-0R5G20G-55DB-SFF-50OHMS-50MV Active

0.5 to 20 GHz Log Amp

Buy Now
Product Feature

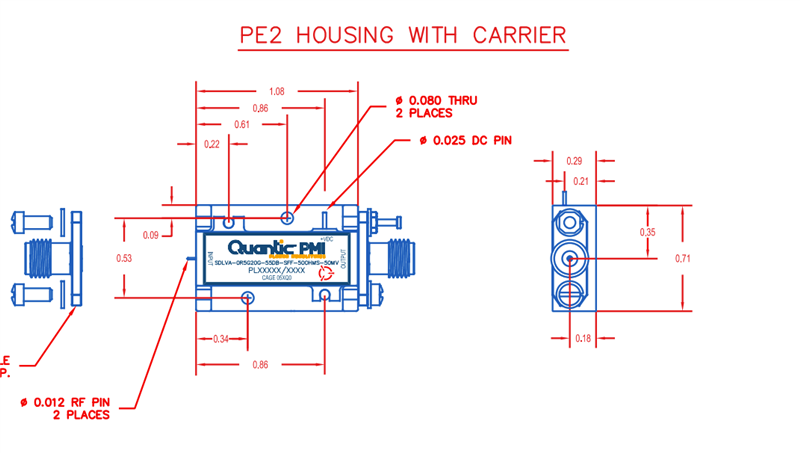

Quantic PMI Model SDLVA-0R5G20G-55DB-SFF-50OHMS-50MV F is a miniature Successive Detection Log Video Amplifier (SDLVA) supplied in our standard PE2 housing that can be used in connectorized or strip line applications. It operates from 0.5 to 20 GHz frequency range, greater than 55 dB dynamic range ultra-high speed. Its size and stunning performance makes it an attractive solution for high speed, wide band, and high reliability channelized receiver applications.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 20 GHz
Frequency Min (GHz): 0.5
Frequency Max (GHz): 20
Logging Range (dBm): -55 to +5
Video Load (Ohms): 50
TSS (dBm): -58 Typ
Log Slope (mV/dB): 50 Typ
Log Linearity: ±1.5 dB (Pin = -50 to 0 dBm) @ +25 °C Typ
Input VSWR: 2.8:1 Typ
Log Video Output Slope: 50 mV/dB Typ
Log Video Output Voltage: 0.1 to 2.5 V Typ
Tangential Sensitivity: -58 dBm TSS Typ
Frequency Flatness: ±2.0 dB Typ
Log Linearity Over Temp: ±2.0 dB (Pin = -50 to 0 dBm) @ -55 °C to +85 °C Typ
Log Video Output Rise Time: 5 ns (Pin = -20 dBm @ 10% to 90%)
Log Video Output Fall Time: 20 ns (Pin = -20 dBm @ 90% to 10%)
Log Video Recovery Time: 28 ns (Pin = -50 to 0 dBm)
Log Video Propagation Delay: 15 ns Typ
Video Output Load: 50 Ohm Load
Operating Voltage: +8 to 15 VDC
Operating Current: 130 mA Typ
ESD Sensitivity: HBM Class 0
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating)
-65 °C to +125 °C (Storage)
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
