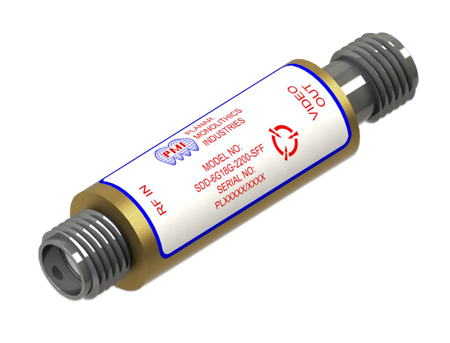

General Parameters: |
Status: | Active |
Frequency Min: | 6 GHz |
Frequency Max: | 18 GHz |
VSWR In/Out: | 2.5:1 Typ, 4.0:1 Max |
Frequency Flatness: | ±1 dB @ -20 dBm |
Connectors In/Out: | SMA (F) |
Sensitivity: | 2200 mV/mW Min 2600 mV/mW Typ |
Output Capacitance: | 10 pF Max |
Bias: | 150 µA |
Flatness @ -20 dBm: | ±1 dB |
Video Impedance: | 100 Ohms Typ, 350 Ohms Max |
Power Handling: | +20 dBm CW +26 dBm Pulsed (25% Duty Cycle) |
Environmental Ratings: |
Operating Temperature: | -40 °C to +85 °C |
Non-Operating Temperature: | -55 °C to +125 °C |
Humidity: | MIL-STD-202G, Method 103B Cond. B |
Shock: | MIL-STD-202G, Method 213B Cond. B |
Vibration: | MIL-STD-202G, Method 204D Cond. B |
Altitude: | MIL-STD-202G, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202G, Method 107G Cond. A |
