QSM-LM-0R42R5-22-200W Active

Limiter

QSM-LM-0R42R5-22-200W
Product Feature

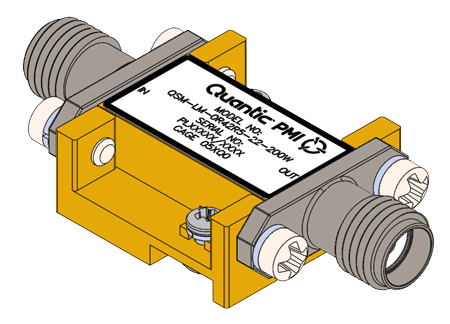

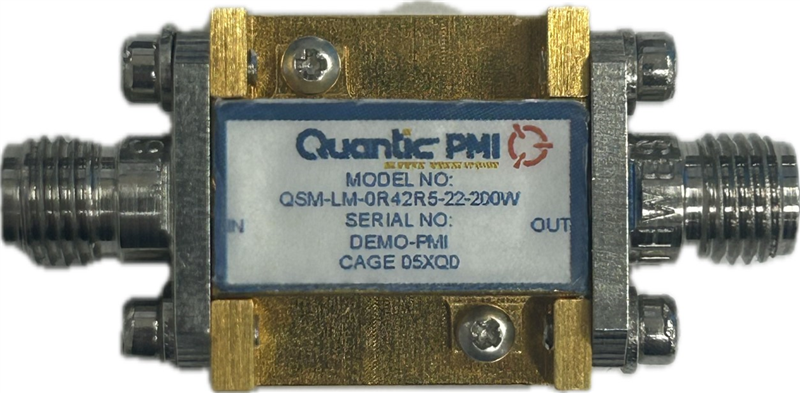

Quantic PMI Model QSM-LM-0R42R5-22-200W is a 0.4 to 2.5 GHz limiter with 0.6 dB insertion loss and a P1dB of 7 dBm.  This limiter is supplied with removable SMA (F) connectors and a housing measuring 0.70" x 0.69" x 0.31"that can be used as a connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.4 to 2.5
Frequency Min (GHz): 0.4
Frequency Max (GHz): 2.5
Insertion Loss (dB): 0.6 dB Max
Input/Output VSWR: 1.2:1 dB Max
Input Power: 40 dBm CW Max
Spike Leakage: 0.5 ergs Max
RF Leakage (dBm): 22 dB Max (Flat)
Recovery Time: 1 dB Insertion Loss within 1000 ns of 50% of the falling edge of RF pulse
P1dB Limiting Threshold (dBm): 7 Min
Connectors In/Out: SMA Female (Removable)
Size: 0.70" x 0.69" x 0.31"
Finish: Gold Plated
Peak Input Power: 100 kHz to 0.4 GHz: 42 dBm (PW 23 µs / DC 0.5%)
0.4 to 4 GHz: 53 dBm (PW 130 µs / DC 3.5%)
4 to 40 GHz: 45 dBm (PW 2.6 µs / DC 1.0%)
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -54 ˚C to +85 ˚C
Non-Operating Temperature: -54 ˚C to +85 ˚C
