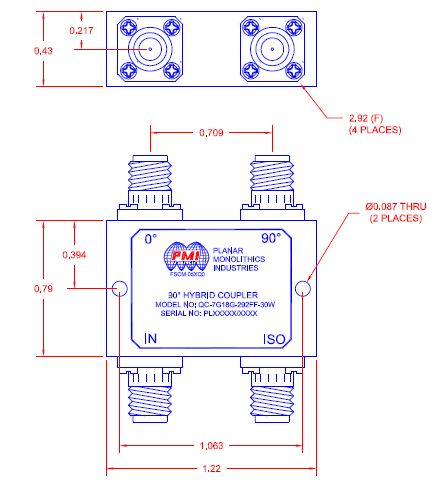

QC-7G18G-292FF-30W Preliminary

PMI Model QC-7G18G-292FF-30W is a 7.0 to 18.0 GHz, 90° hybrid coupler. This model offers a phase balance of ±5 degrees maximum and low insertion loss of 1.3 dB maximum.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 7.0 GHz
Frequency Max: 18.0 GHz
Amplitude Balance: ±0.5 dB MAX
Phase Balance: ±5° MAX
Isolation: 18 dB MIN
VSWR: 1.40:1 MAX
Insertion Loss: 1.3 dB MAX
Nominal Split: 3.01 dB
Connectors (In/Out): 2.92mm Female
Finish: Painted Blue
Impedance: 50 OHMs
Power Handling: Average 30 W MAX
Peak 1 kW MAX
Environmental Ratings:
Operating Temperature: -55°C to +85°C
Non-Operating Temperature: -65°C to +125°C
Humidity: MIL-STD-202F, METHOD 1038 COND. B
Shock: MIL-STD-202F, METHOD 213B COND. B
Vibration: MIL-STD-202F, METHOD 204D COND. B
Altitude: MIL-STD-202F, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202F, METHOD 107D COND. A
