Hybrid Coupler

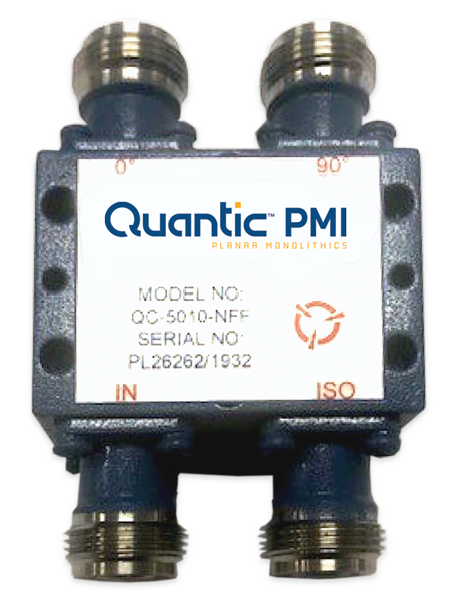

PMI Model No. QC-5010-NFF is a hybrid coupler that operates over the frequency range of 5.0 to 10.0 GHz. It has a maximum insertion loss of 1.1 dB and a minimum isolation of 16 dB. This product is outfitted with N female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 5.0 GHz
Frequency Max: 10.0 GHz
Amplitude Balance: ±0.75 dB Max
Phase Balance: ±5° Max
Isolation: 16 dB Min
Frequency Range: 5.0 to 10.0 GHz
VSWR: 1.50:1 Max
Insertion Loss: 1.1 dB Max
Nominal Split: 3.01 dB
Connectors (In/Out): N (F)
Impedance: 50 Ohms
Power Handling: Average: 75 W Max
Peak: 3 KW Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: Up to 95%, Non-Condensing
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
