QC-500M18G-90

PMI Model no. QC-500M18G-90 is a quadrature coupler that operates over the frequency range of 500 MHz to 18.0 GHz. It has a minimum isolation of 14 dB and a maximum insertion loss of 3.5 dB. This product is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 500 MHz
Frequency Max: 18.0 GHz
Amplitude Balance: =±1.2dB
Phase Balance: =±12°
Isolation: =14dB
VSWR: =1.80:1
Insertion Loss: =3.5dB
Nominal Split: 3.01 dB

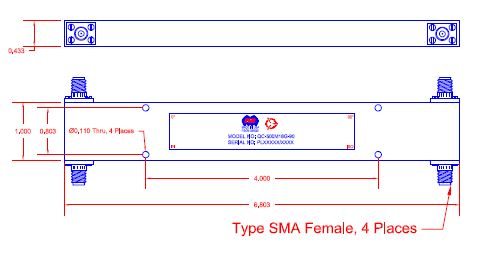

Connectors (In/Out): SMA FEMALE
Impedance: 50 OHMS
Power Handling: Average =20Watt
Peak=0.5KW
Environmental Ratings:
Operating Temperature: -55 °C TO +85 °C
Non-Operating Temperature: -65 °C TO +125 °C
Humidity: UP TO 95%, NON-CONDENSING
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
