QC-48-SFF-LC Active

Hybrid Coupler

Product Feature

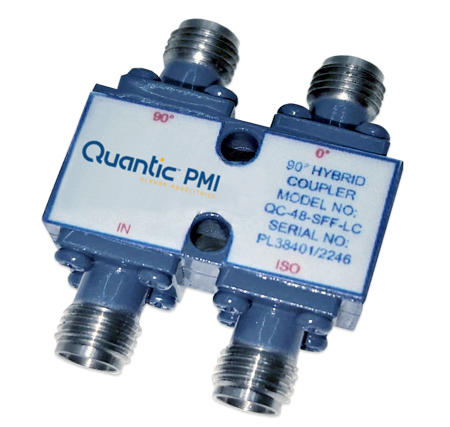

Quantic PMI Model QC-48-SFF-LC is a 4.0 to 8.0 GHz hybrid coupler with a frequency range of 4.0 to 8.0 GHz with an insertion loss of 0.75 dB maximum, an isolation of 20 dB minimum, a VSWR of 1.25:1, an amplitude balance of ±0.5 dB, a phase balance of ±3°, and an input power of 50 W average. This model's housing measures 1.00" x 0.50" x 0.38" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 4.0 GHz
Frequency Max: 8.0 GHz
Amplitude Balance: ±0.5 dB Max
Phase Balance: ±3° Max
Isolation: 20 dB Min
VSWR: 1.25:1 Max
Size: 1.00" X 0.50" X 0.38"
Insertion Loss: 0.75 dB Max
Nominal Split: 3.01 dB
Connectors (In/Out): SMA Female
Finish: Painted Blue
Impedance: 50 OHMs
Power Handling: Average 50 W Max
Peak 3 KW Max
Environmental Ratings:
Operating Temperature: - 55 °C to +85 °C
Humidity: 95% RH @ 40 °C
Shock: 20G FOR 11msec HALF SINE WAVE, 3 AXIS BOTH DIRECTIONS
Altitude: 60,000 FT 1.0 psi Min
