QC-2931-292FF
Preliminary
PMI Model No. QC-2931-292FF is a 29.0 to 31.0 GHz 90° Hybrid Coupler.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Min: | 29.0 GHz |
|---|
| Frequency Max: | 31.0 GHz |
|---|
| Amplitude Balance: | ±1.2 dB max. |
|---|
| Phase Balance: | ±10° max. |
|---|
| VSWR: | 1.8:1 max. |
|---|

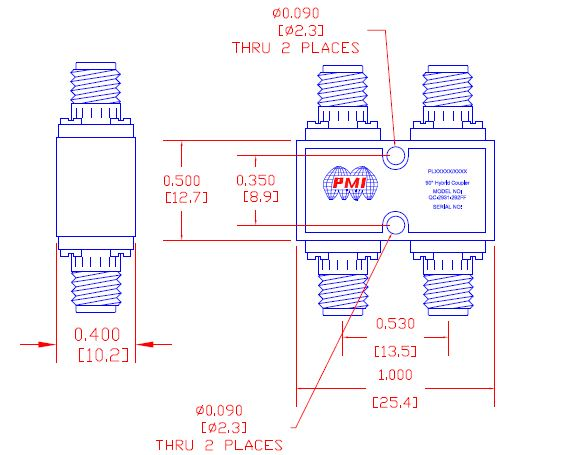

| Size: | 1.00" x 0.50" x 0.40" |
|---|
| Insertion Loss: | 2.8 dB max. |
|---|
| Connectors (In/Out): | 2.92 mm (F) |
|---|
| Finish: | Painted Blue |
|---|
| Nominal Coupling: | 3.0 dB max. |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55°C to +100°C |
|---|
| Non-Operating Temperature: | -55°C to +100°C |
|---|
| Humidity: | 95% RH @ 40°C |
|---|
| Shock: | 20G for 11 ms Half Sine Wave, 3 Axis, Both Directions |
|---|
| Altitude: | 60,000 ft. 1.0 psi min. |
|---|
