QC-12-180-NFF Preliminary

Hybrid Coupler

Quantic PMI Model QC-12-180-NFF is a hybrid coupler that operates over the frequency range of 1.0 to 2.0 GHz. It has a maximum insertion loss of 0.4 dB and a minimum isolation of 18 dB.

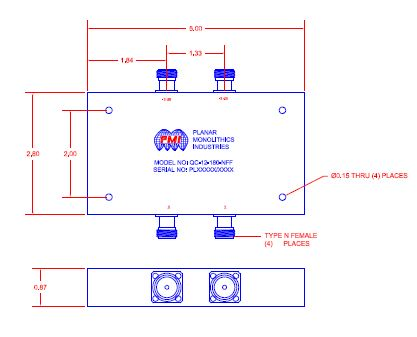

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 1.0 GHz
Frequency Max: 2.0 GHz
Isolation: 18 dB Min
Amplitude Balance: ± 0.6 dB Max
Phase Balance: ±6° Max
Insertion Loss: 0.4 dB Max
VSWR: 1.40:1 Max
Impedance: 50 Ohm
Connector: N-Female
Finish: Painted Blue
Nominal Split: 3.01 dB
Power Handling: Average: 300 W Max
Peak: 1 kW Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
